SAVE TIME, MONEY AND HASSLE

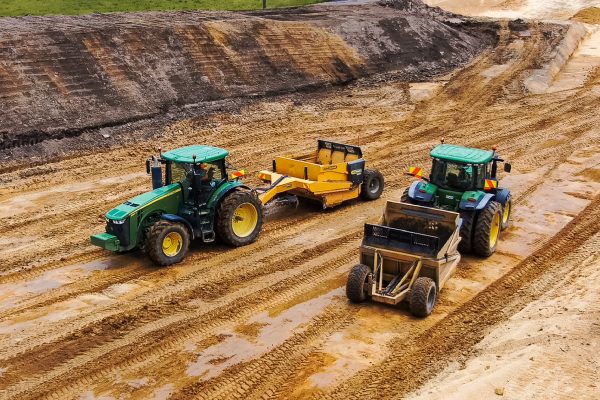

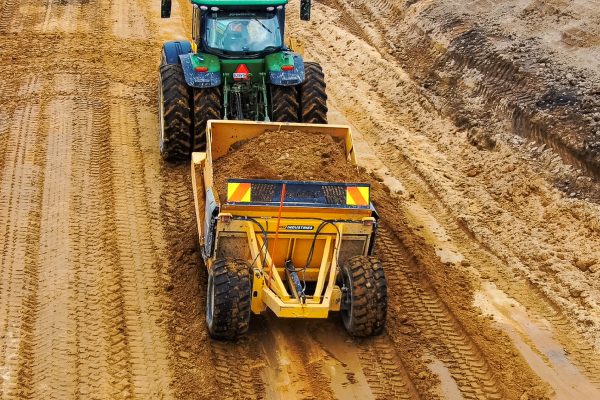

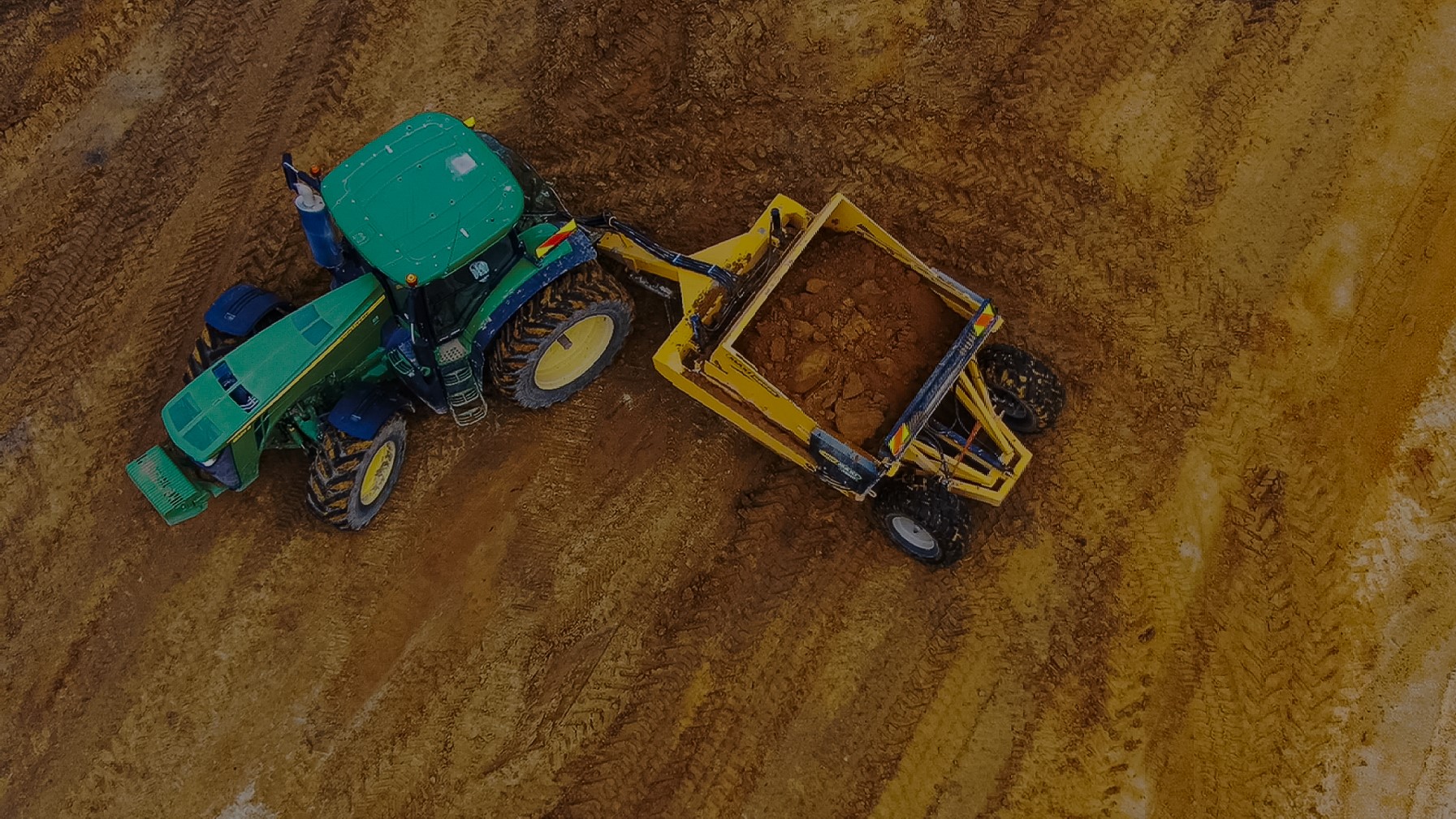

Gather, carry and shift soil using a single earthmoving scraper. HW Industries manufacture custom-built scraper available in a range of sizes all of which use the same simple process to cut land and can fill the scraper in less than 20 seconds.

Whether you’re filling gullies, flattening paddocks, creating farm raceways, roading or subdivisions, HW Industries have the perfect scraper for you.

Our scrapers range from 1m³ in capacity to a colossal 11m³ with the size of your scraper only restricted by the amount of horsepower produced by your tractor.

All of our scrapers can be attached to your tractor using two different fittings, the fixed drawbar fitting or plough arm fitting. Simply hook up your tractor to the preferred fitting, attach the hydraulic hoses the connections that you normally use and you’re ready to cut, scoop, shift, spread or dump to your hearts content.

Our scrapers are the most versatile on the market, combining a digger, dump truck, grader and scraper all in one simple, easy to use machine.

You can make money from your scraper!

Our customers hire out their scrapers to local farmers and contractors and make up to $400 a day – that’s $2,000 + GST per week!

Not only will a HW scraper save you time and money, you will also be able to get a direct cashflow from it! At HW Industries,we advertise nationwide and often get calls from people who are keen to hire a scraper. This has resulted in a service to help out many loyal scraper owners. Now when you buy a scraper, we can put you on our hire list so that when someone from your area wants to hire one, they can get it directly through you!

20 seconds is all it takes to clear 9 cubic metres of soil!

Using HW Scrapers couldn’t be easier. Simply attach the hydraulic hoses and you can use your regular controls to steer, lift and move our scrapers.

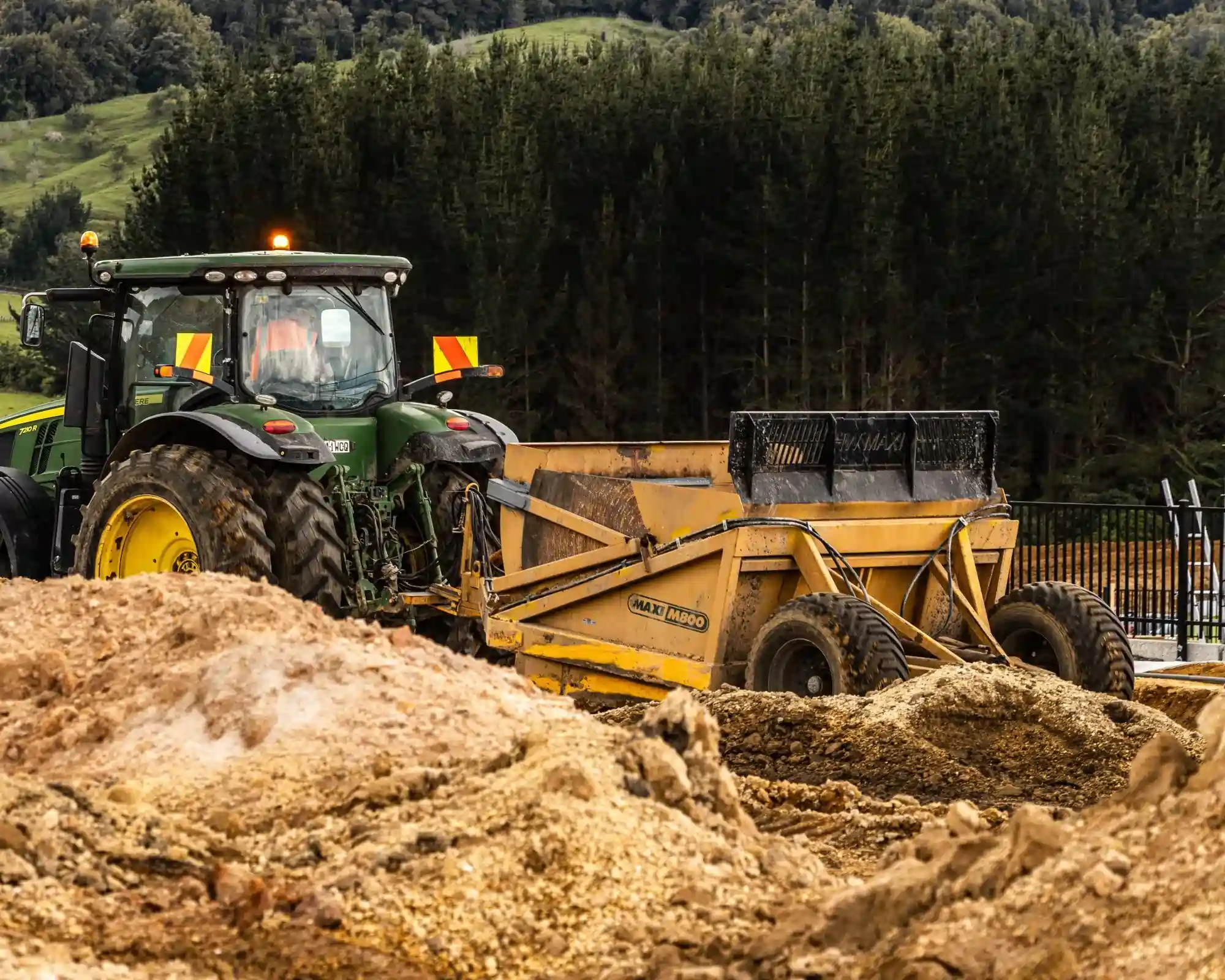

The HW Scrapers come in a varying range of sizes, all of which use the same simple process to cut land, full the scraper and empty soil in the desired area. The largest of the scrapers, the Maxi 800, fills up to 9m³ of soil in less than 20 seconds and can be towed across paddocks without damaging existing pasture. The size of your scraper will depend on the horsepower of your tractor, but all of our scrapers do a brilliant job and have the same simple attachments. We also have drawbar models to suit any tractor!

8 reasons our scrapers are ideal for you:

1. Built Tough!

Made right here in New Zealand for our conditions, the scrapers are rugged with the frame as a support for extra strength, along with the double gusset frame on the apron. Rams are mounted at the ends of the machine to relieve strain on the frame.

2. Low Maintenance

The three cutting blades are stepped and fitted on a shallow angle to enable the ground to be cut through and loaded easily. Other blade options available. They’re made from 20mm abrasive resistant, wearalloy for long lasting use.

3. Use Your Own Tractor

Using your existing tractor, you can simply hook on the scraper and do the job yourself. Do it in your own time and get it done to your satisfaction.

4. Stable On Uneven Ground

The low centre of gravity means you can take the scrapers up, down and on hillsides safely (unlike tip trailers which have a high centre of gravity).

5. Wider Tyres For Better Stability

Using the wide 16 ply ribbed tyres, stops the tyres from digging in and damaging your grass and gives you better grip on hillsides. These tyres also allow you to work in soggy conditions such as swampy land and peat soil.

6. One Person Operation

Unlike many heavy machines, you can get your work done quickly without the extra costs of more workers or machinery you won’t use.

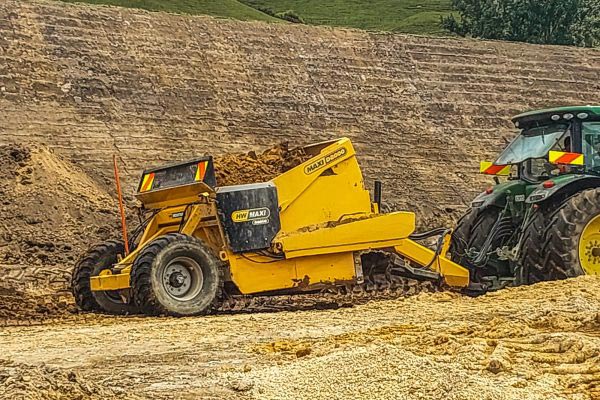

7. Cut On Hillsides

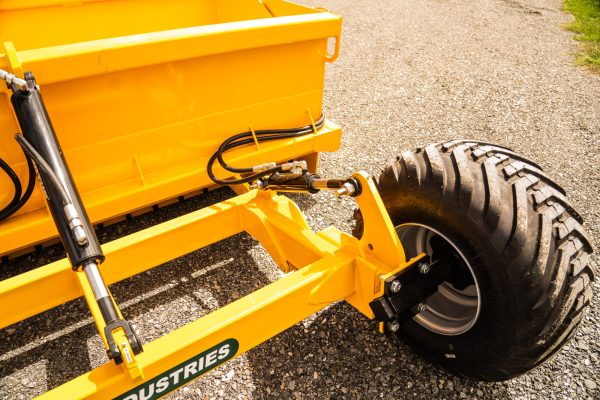

The axle can be tilted in excess of 120mm (5° angle), making cambered roadways, drain cleaning and bevelling into hillsides for tracks easier than ever before!

8. Easy To Attach

Simply attach the scraper to the tractor and connect the hoses to the hydraulic bank and you’re ready for action.

Plough Arm Models Specification

ModelCapacityRecommended HorsepowerCutting Width
Maxi 300
3m3
80hp
2m
Maxi 400
4m3
100hp
2m
Maxi 500
5m3
130hp
2.4m
Maxi 600
6m3
160hp
2.7m
Maxi 800
8m3
220hp
2.7m
Maxi 1000
10m3
300hp
3m
Maxi 1200
12m3
400hp
3.6m

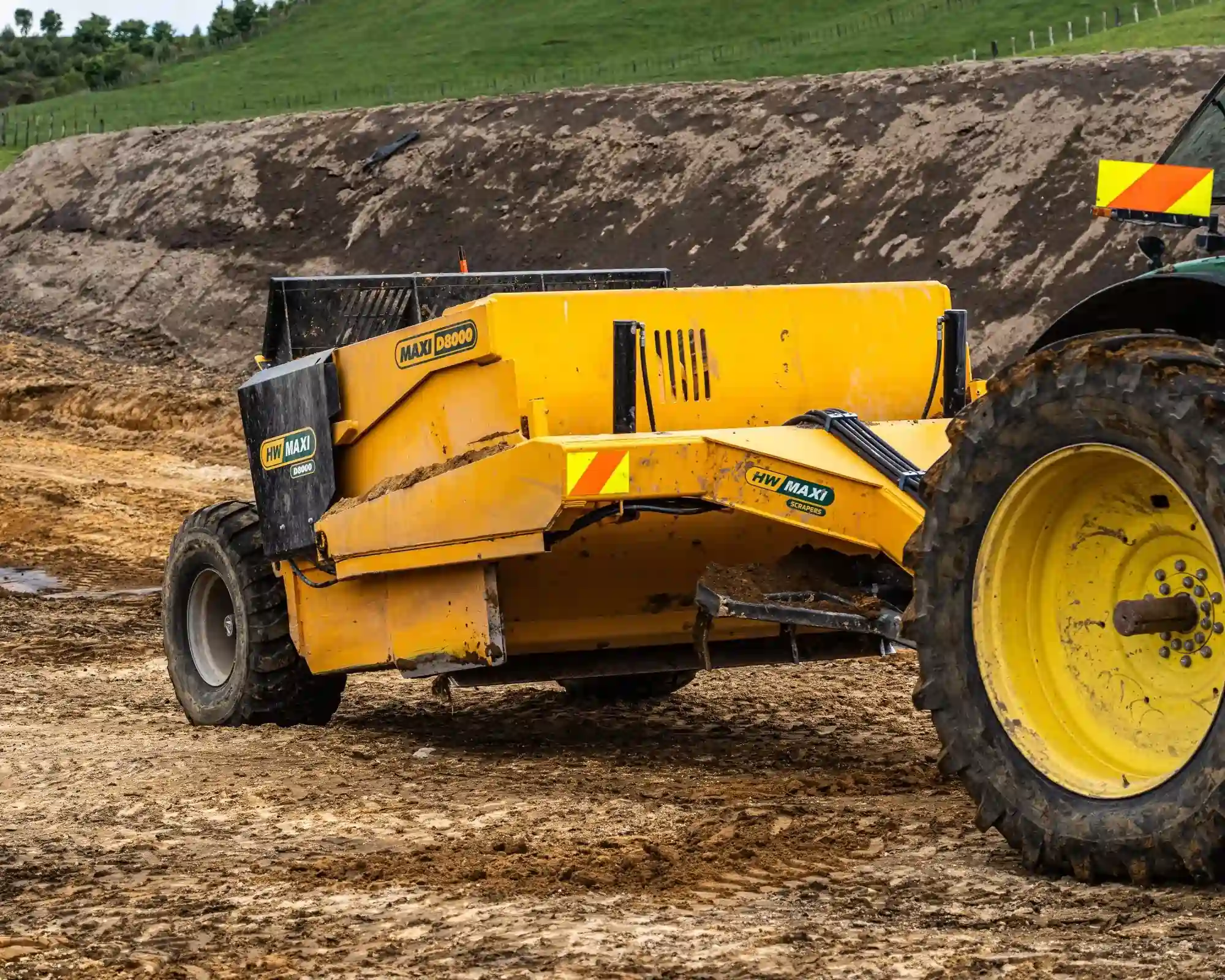

Drawbar Models Specifications

ModelCapacityRecommended HorsepowerCutting Width
D3000
3m3
80hp
2m
D4000
4m3
100hp
2m
D5000
5m3
130hp
2.4m
D6000
6m3
160hp
2.7m
D8000
8m3
220hp
2.7m
D10000
10m3
300hp
3m
D12000
12m3
400hp
3.6m

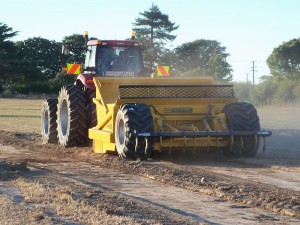

2-M1200-Scraper-Plough-Arm

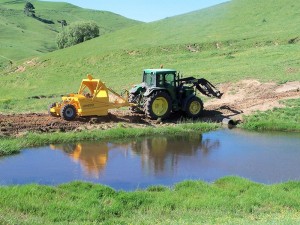

image-M300-Scraper-Plough-Arm
