Drawbar scraper on ground in New Zealand

HW Maxi Linkage Arm Scraper

The HW Maxi Linkage Arm Scrapers offer superior earthmoving capabilities for tractors ranging from 80hp to 400hp. These scrapers feature hydraulic controls, generous load capacities, and efficient designs, making them ideal for agriculture, landscaping, and construction tasks.

Benefits:

Enhanced Efficiency: Quick load times and wide cutting widths.
Versatility: Suitable for various land management applications.
Durability: Built with high-quality materials for long-lasting use.
Precision Control: Hydraulic rams for accurate cutting, loading, and dumping.
Increased Productivity: Large capacity models for faster, more efficient operations.

DOWNLOAD BROCHURE

REQUEST A QUOTE

Key Features

High Load Capacities

Suitable for tractors ranging from 80hp to 400hp, accommodating various project sizes.

Durable Construction

Built with high-quality materials to withstand tough conditions and ensure longevity.

Easy Maintenance

Features designed for straightforward upkeep to minimize downtime and maximize productivity.

Versatile Applications

Ideal for agriculture, landscaping, and construction tasks, offering flexibility for different land management needs.

Linkage Arm Scraper Model Specifications

Explore our diverse range of Linkage Arm Scraper models.

M1200

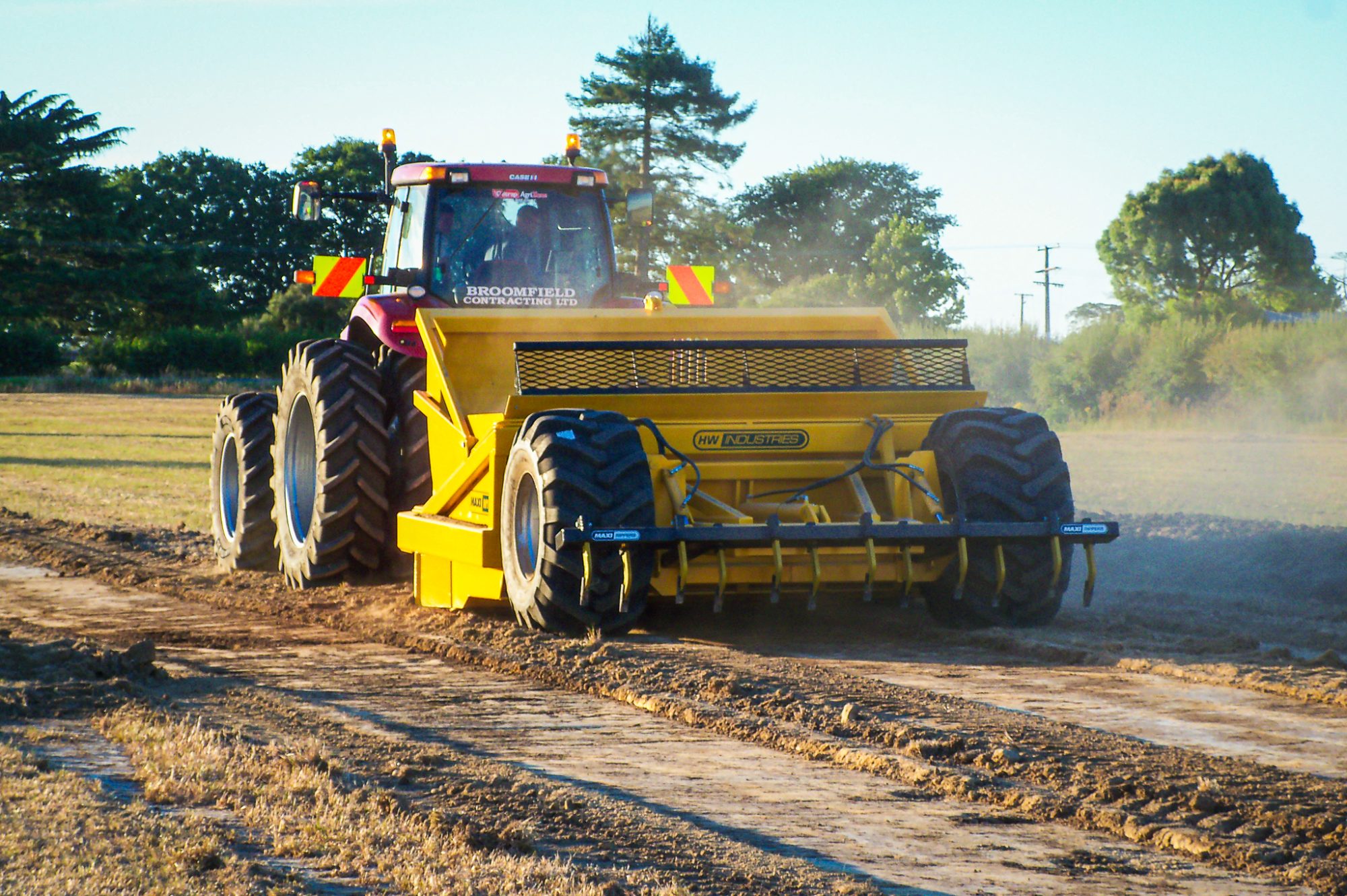

The M1200 Model

The M1200 Linkage Arm Scraper, the largest in its category, boasts a formidable 12m³ load capacity and a wide 3.6m cut. It is perfectly suited for extensive commercial farming and contracting tasks, requiring at least 350hp to operate efficiently.

Model: M1200

Capacity: 12m³

Recommended Horsepower: 350hp

Overall Width: 3600mm

Overall Height: 1800mm

Overall Length: 7500mm

Standard Cutting Width: 3600mm (11.8ft)

Machine Weight: 6000kg

Tyres: 750/50-26.5

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M1000

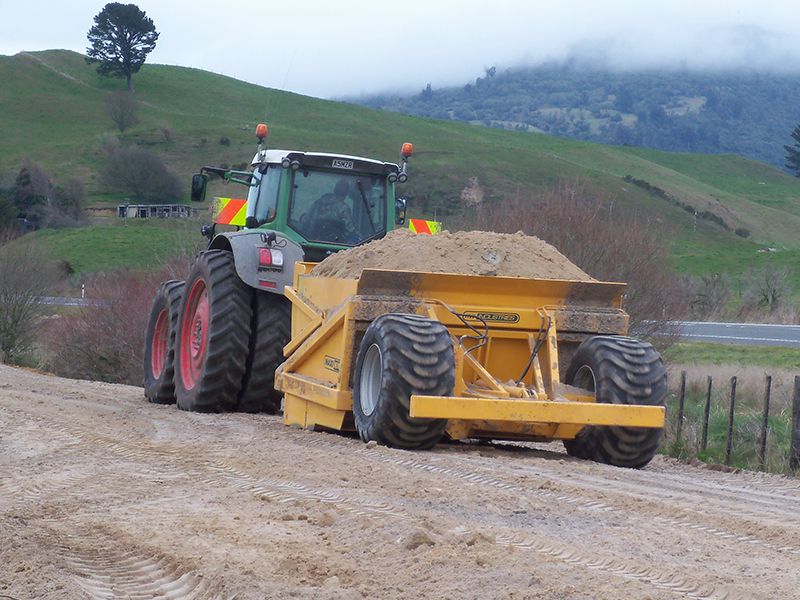

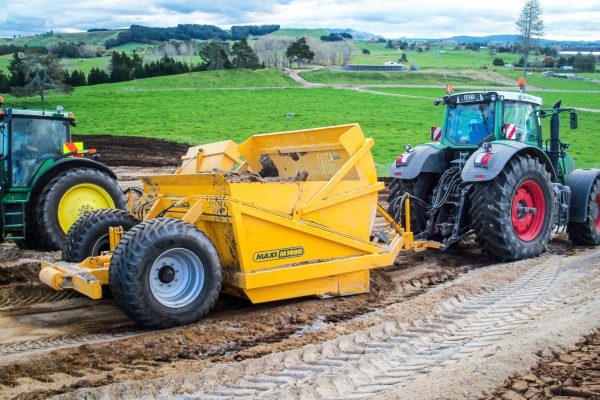

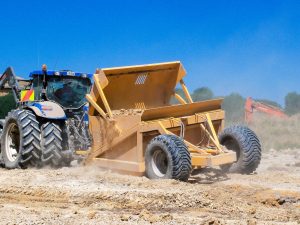

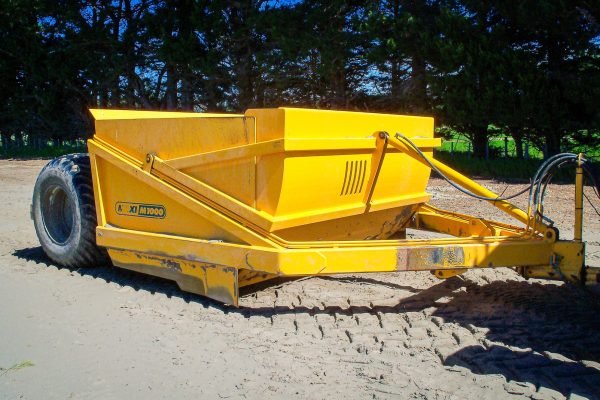

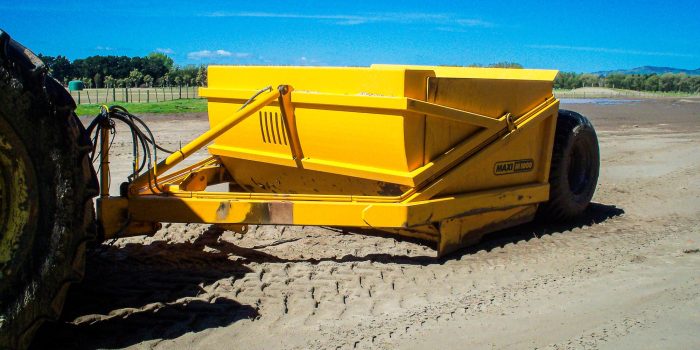

The M1000 Model

The M1000 tractor scraper requires a tractor that is 130hp or more to pull it, due to its impressive 10m³ load capacity. This huge capacity means it is predominantly intended for industrial use, large scale contracting and farm work.

Model: M1000

Capacity: 10m³

Recommended Horsepower: 250hp

Overall Width: 3000mm

Overall Height: 1800mm

Overall Length: 7000mm

Standard Cutting Width: 3000mm (9.8ft)

Machine Weight: 5000kg

Tyres: 700/50-26.5

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M800

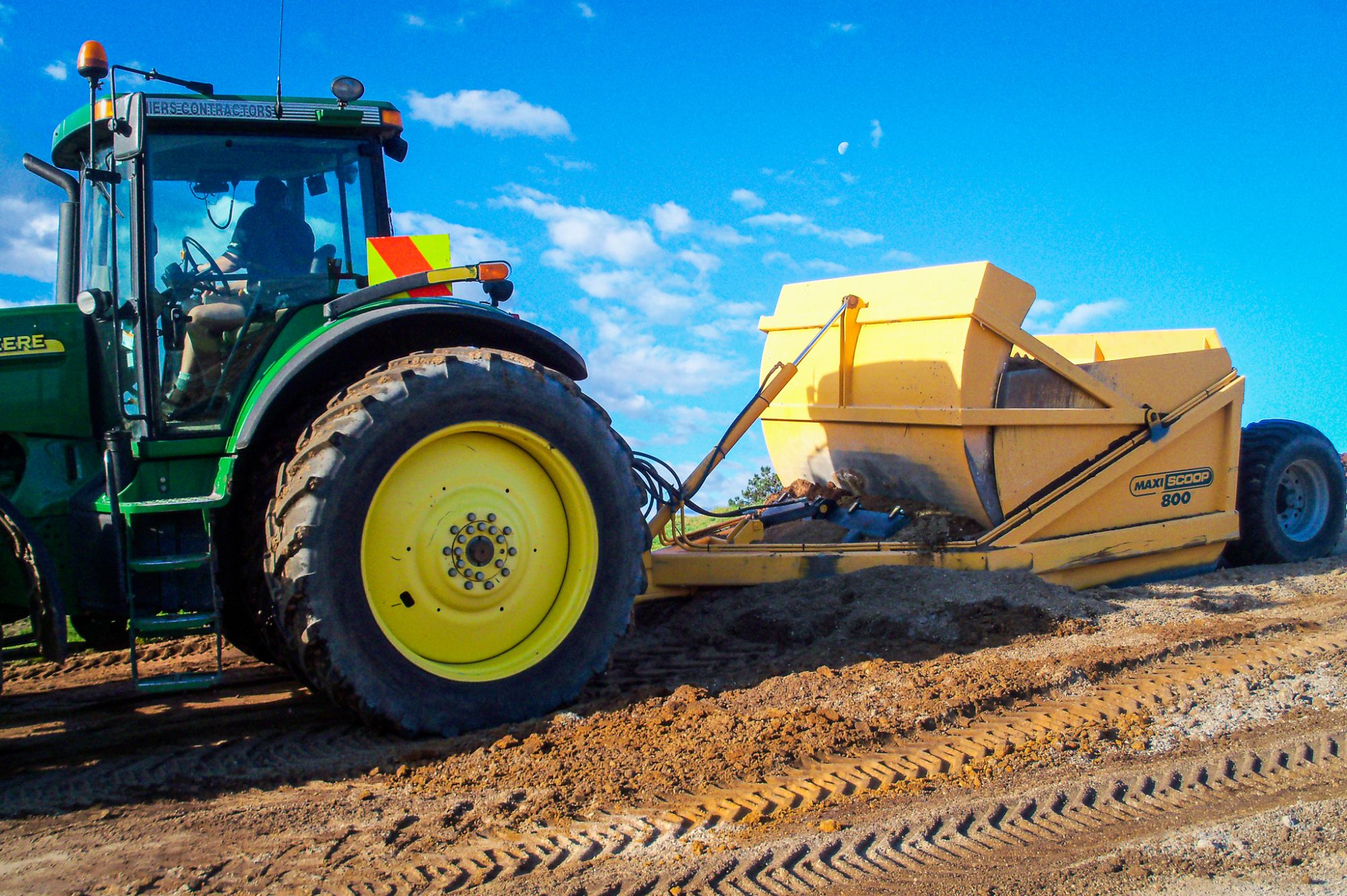

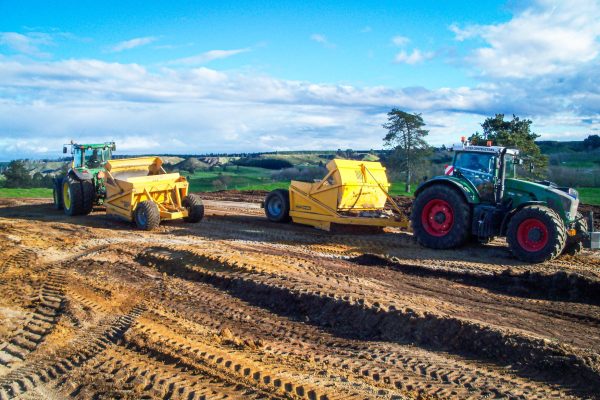

The M800 Model

The M800 Scraper boasts a huge 8m³ load capacity, and with its hydraulic ram, this scraper has proven to be ideal for commercial farm work and contracting, as well as large industrial use. This tractor scraper makes earth moving a breeze, collecting soil efficiently and quickly.

Model: M800

Capacity: 8m³

Recommended Horsepower: 200hp

Overall Width: 2650mm

Overall Height: 1800mm

Overall Length: 5900mm

Standard Cutting Width: 2650mm (8.6ft)

Machine Weight: 3500kg

Tyres: 550/60-22.5

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M600

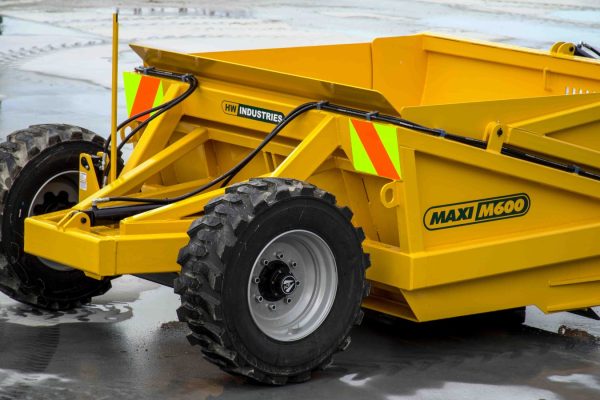

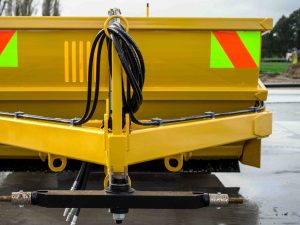

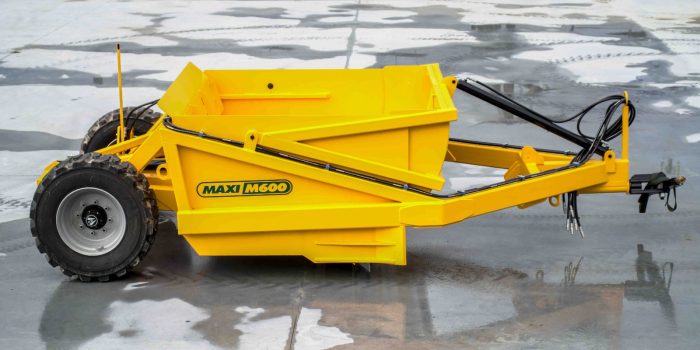

The M600 Model

A large 6m³ load capacity makes the M600 scraper ideal for larger land management tasks. Big commercial earth moving companies will use scrapers that have load capacities this large, or larger, meaning it is a popular piece of equipment for industrial use.

Model: M600

Capacity: 6m³

Recommended Horsepower: 150hp

Overall Width: 2650mm

Overall Height: 1500mm

Overall Length: 5900mm

Standard Cutting Width: 2650mm (8.6ft)

Machine Weight: 3500kg

Tyres: 550/60-22.5

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M500

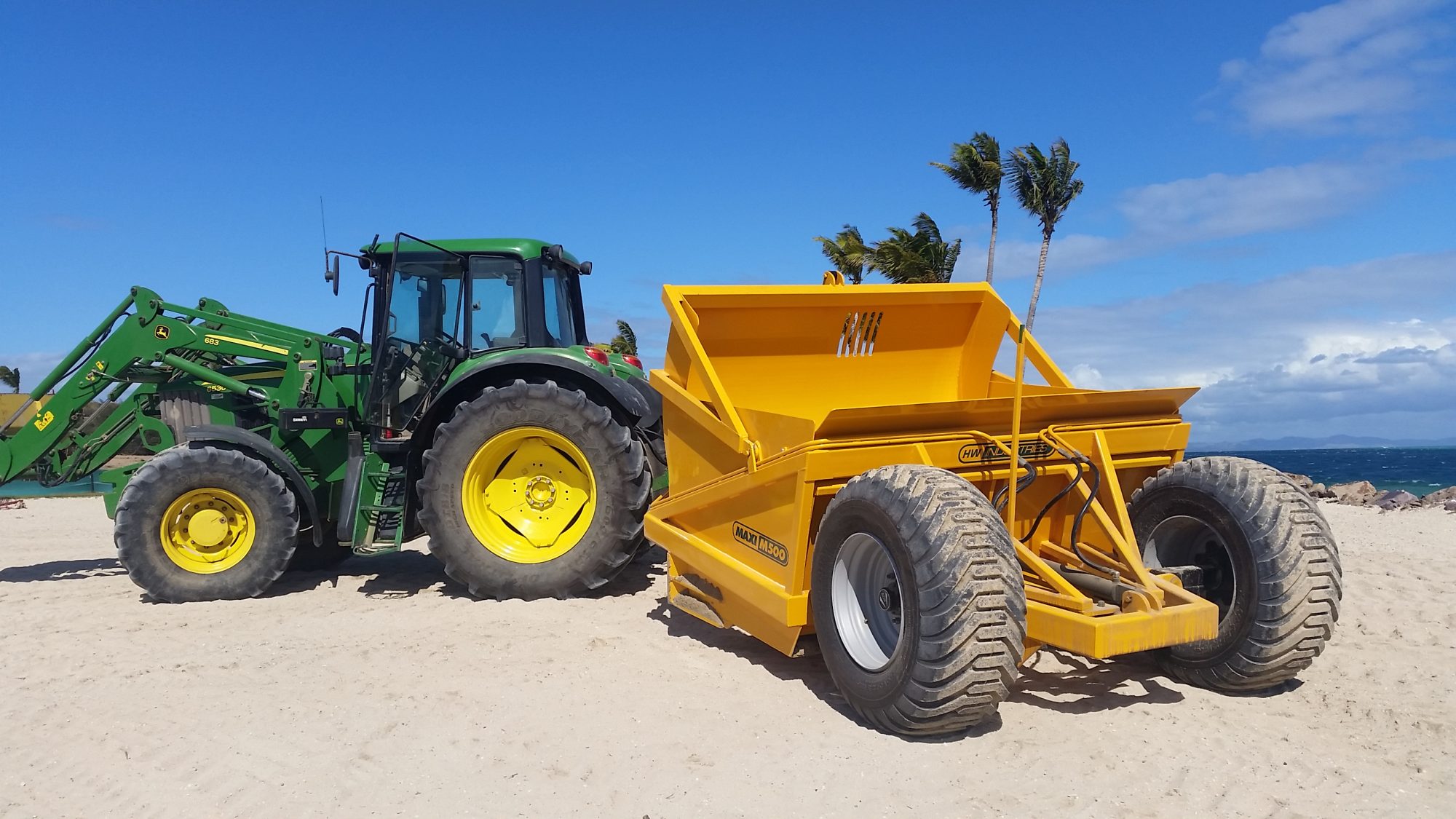

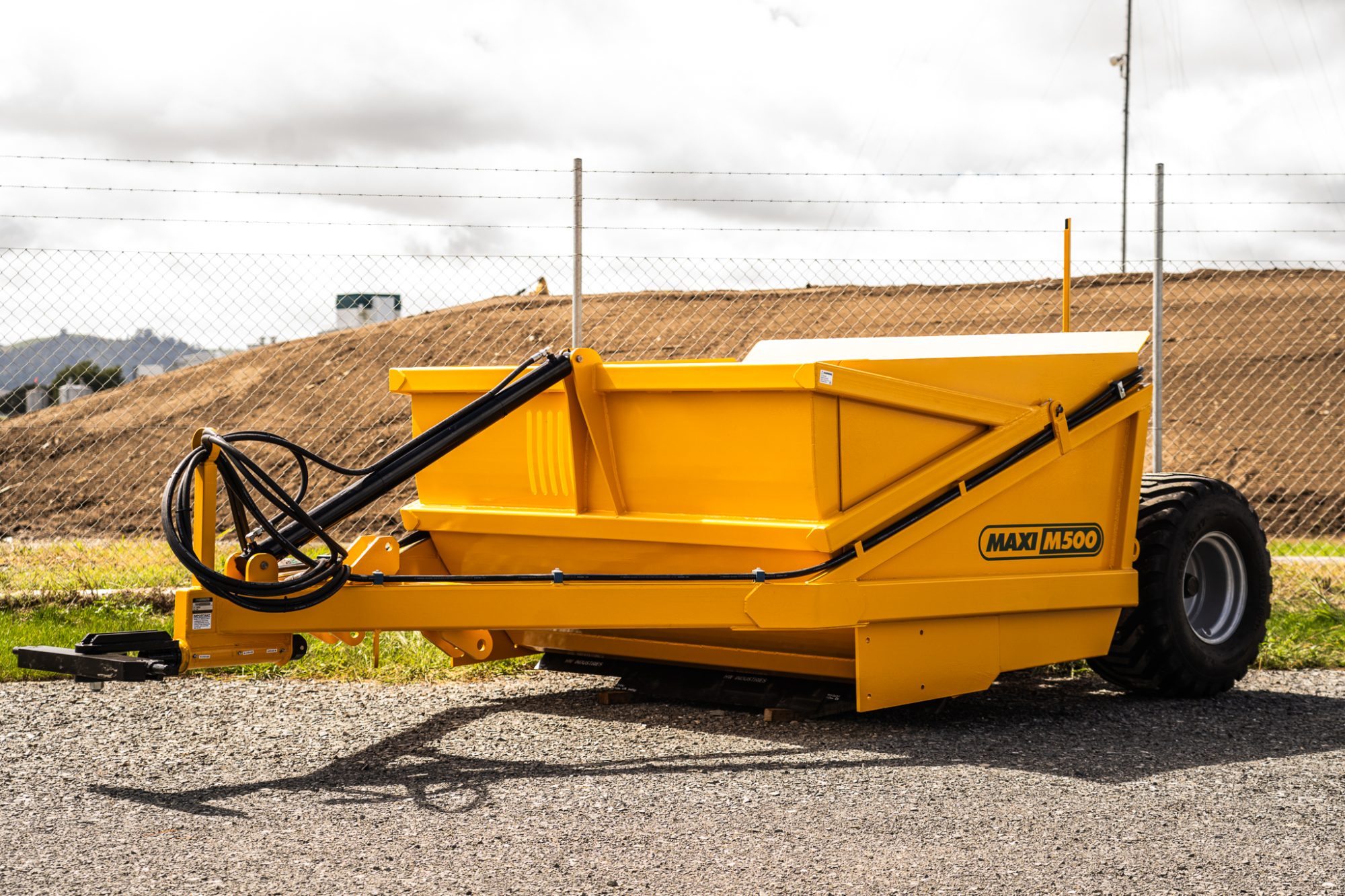

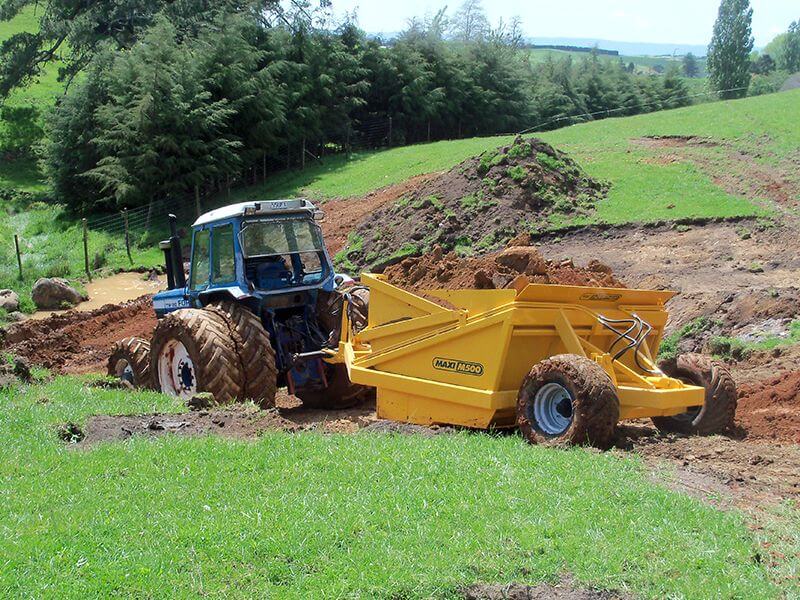

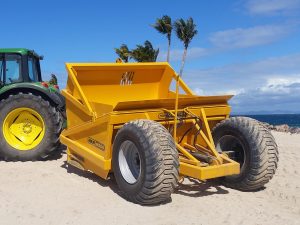

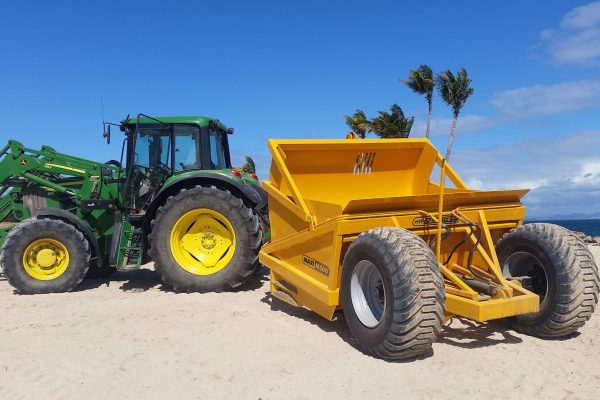

The M500 Model

With a load capacity of 5m³, the M500 allows faster and speedier land management. It also has a wider cut, measuring 2.4m, giving it the ability to pick up soil faster and more effectively.

Model: M500

Capacity: 5m³

Recommended Horsepower: 125hp

Overall Width: 2400mm

Overall Height: 1400mm

Overall Length: 5400mm

Standard Cutting Width: 2400mm (7.8ft)

Machine Weight: 2500kg

Tyres: 400/60-15.5

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M400

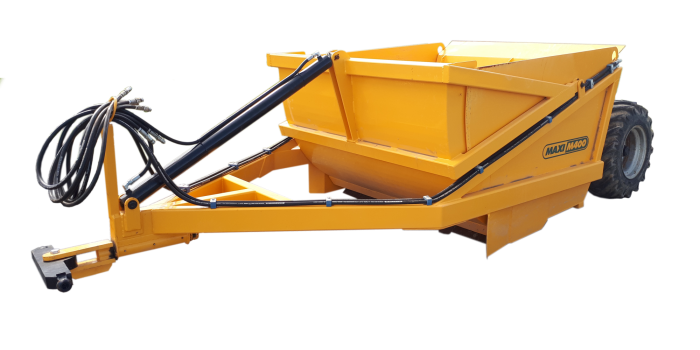

The M400 Model

The M400 scraper has a 4m³ load capacity and teams up well with a 100hp tractor. This tractor scraper combo makes it ideal for larger tasks such as commercial site preparation and land clearing. It is also ideal for commercial agriculture use. With a double acting hydraulic ram on both the apron and tailgate, the M400 undertake accurate control of cut, load, cart, dump and spread.

Model: M400

Capacity: 4m³

Recommended Horsepower: 100hp

Overall Width: 2000mm

Overall Height: 1400mm

Overall Length: 5200mm

Standard Cutting Width: 2000mm (6.5ft)

Machine Weight: 2000kg

Tyres: 11.5/80-15.3

Hydro Banks Required: 3 sets

Rams: 3

Hitch Style: Linkage Arm

M300

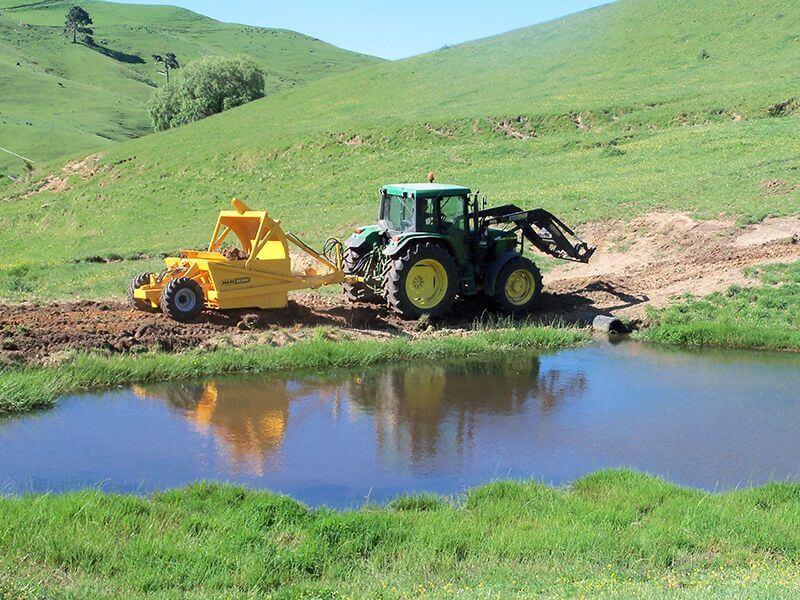

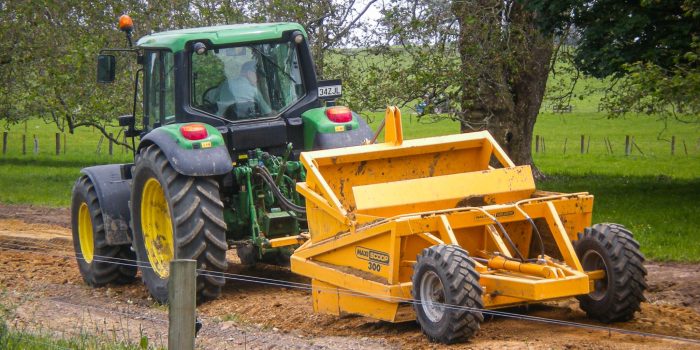

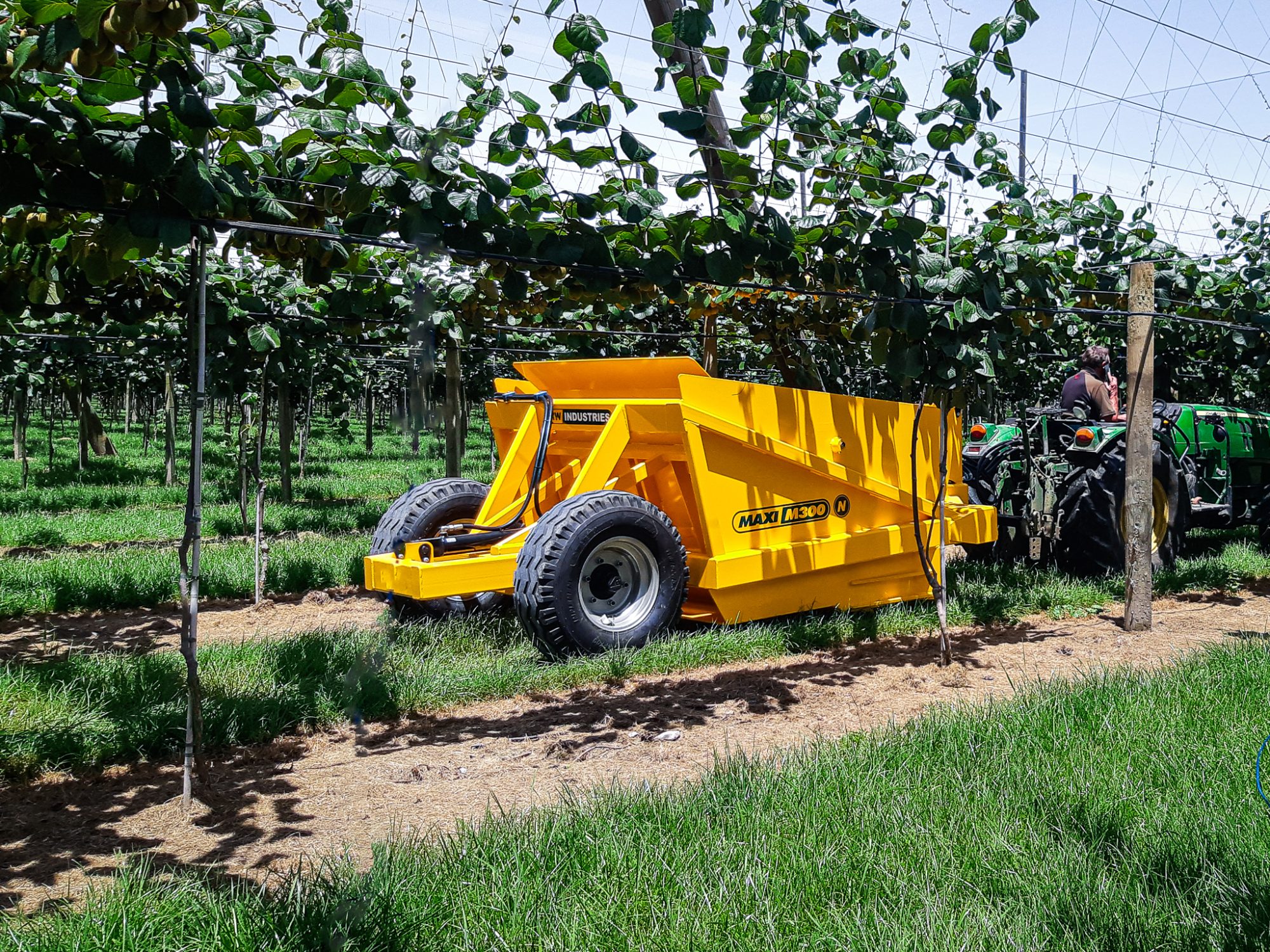

The M300 Model

The M300 Scraper has a generous load capacity of 3m³ with a hydraulic ram that gives it the ability to undertake a wide variety of tasks and tackle them with ease. Its wide 2m cut means it can fill up in less than 20 seconds of 15 metres. This scraper is perfect for small to medium scale land management tasks, including farm work and construction site preparation.

Model: M300

Capacity: 3m³

Recommended Horsepower: 80hp

Overall Width: 2000mm

Overall Height: 1100mm

Overall Length: 5200mm

Standard Cutting Width: 2000mm (6.5ft)

Machine Weight: 1800kg

Tyres: 11.5/80-15.3

Hydro Banks Required: 2-3 sets

Rams: 3

Hitch Style: Linkage Arm

Optional Extras

We can customise your machine to suit your needs. View our optional extras.

VIEW OPTIONAL EXTRAS

What our Customers Say

“Have owned 3 maxi scrapers. I wouldn’t have bought another one if I thought it wasn’t that good!”

Tractor Drawn Earthmoving Scrapers

“I can move massive amounts of soil in very short time frames! Faster than diggers, trucks, or bulldozers. Used it for stockpiling in a sand quarry.”

Will Hjorth, Cambridge

Frequently Asked Questions

Can HW Maxi Scrapers handle tough terrain?

HW Scrapers come equipped with wide, 16 ply ribbed tyres and have a low centre of gravity. This means that you can effectively take your scraper anywhere your tractor will go whether it’s on soggy, swampy land or peat soil or on steep hillsides. The wide tyres also prevent your scraper from digging in and damaging your grass due to their width and the special tread.

What tractor horsepower is required to operate a linkage arm scraper efficiently?

Linkage arm scrapers require a tractor with at least 80hp, with larger models needing up to 400hp.

What is the load capacity of the largest linkage arm scraper?

The load capacities vary across models, the largest model; the M1200, has a load capacity of 12m³. Contact us to learn more about our load capacity, contact us.

Can HW Maxi Linkage Arm Scrapers be customized to meet my specific needs?

Yes, we offer full customization options for HW Maxi Linkage Arm Scrapers to meet your specific requirements. Contact us to find out more about how we can tailor our equipment to suit your project needs, contact us.

What are the primary applications for linkage arm scrapers?

These scrapers are ideal for commercial farming, landscaping, and construction tasks.

How can I learn more or purchase an HW Maxi Linkage Arm Scraper?

To learn more or discuss your specific needs, you can contact us online or call 0800 72 66 77. Our experienced team is ready to assist you with all your questions and requirements, contact us.

How do linkage arm scrapers enhance operational efficiency?

They feature quick load times and wide cutting widths, making them highly efficient for large-scale earthmoving projects.

What maintenance is required for linkage arm scrapers?

Regular maintenance includes checking hydraulic systems, inspecting wear parts, and ensuring all moving parts are properly lubricated.
